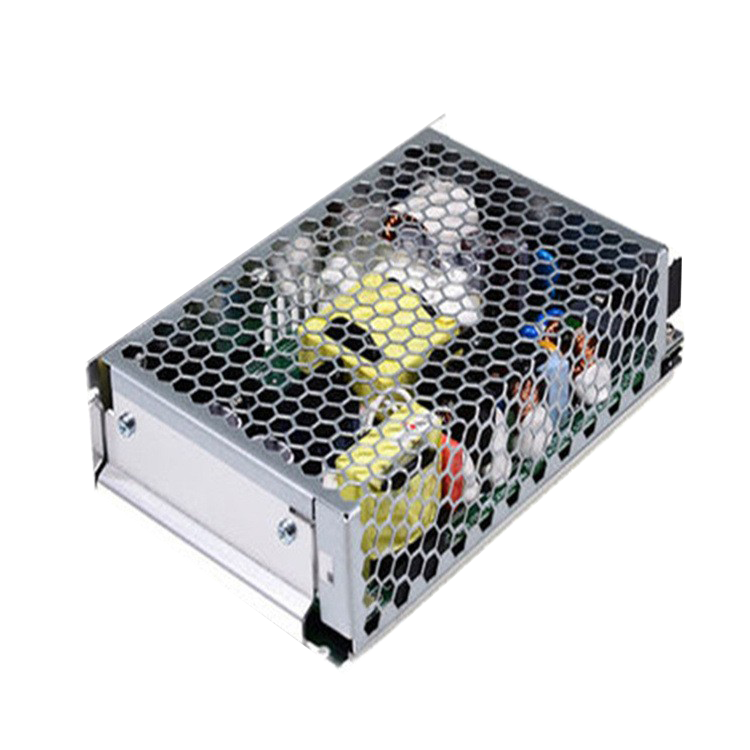

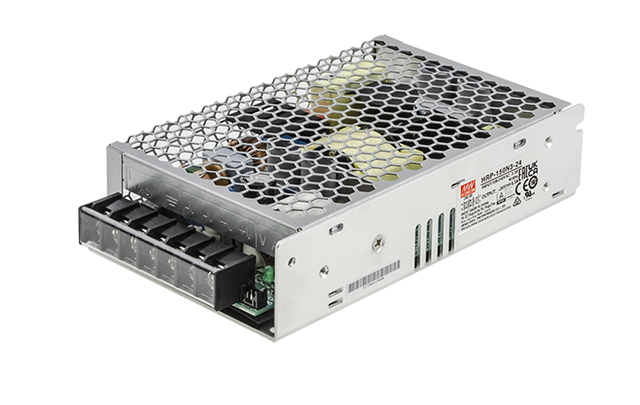

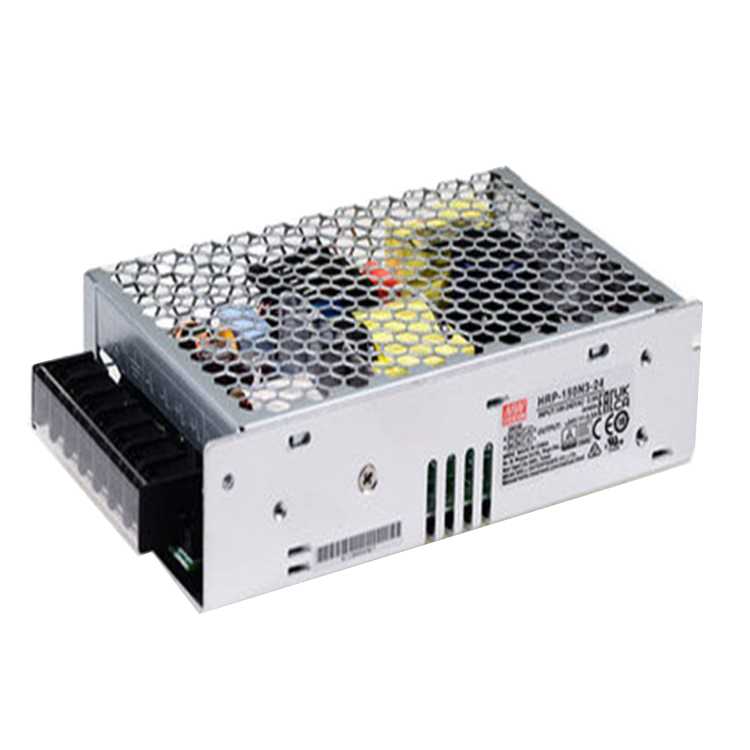

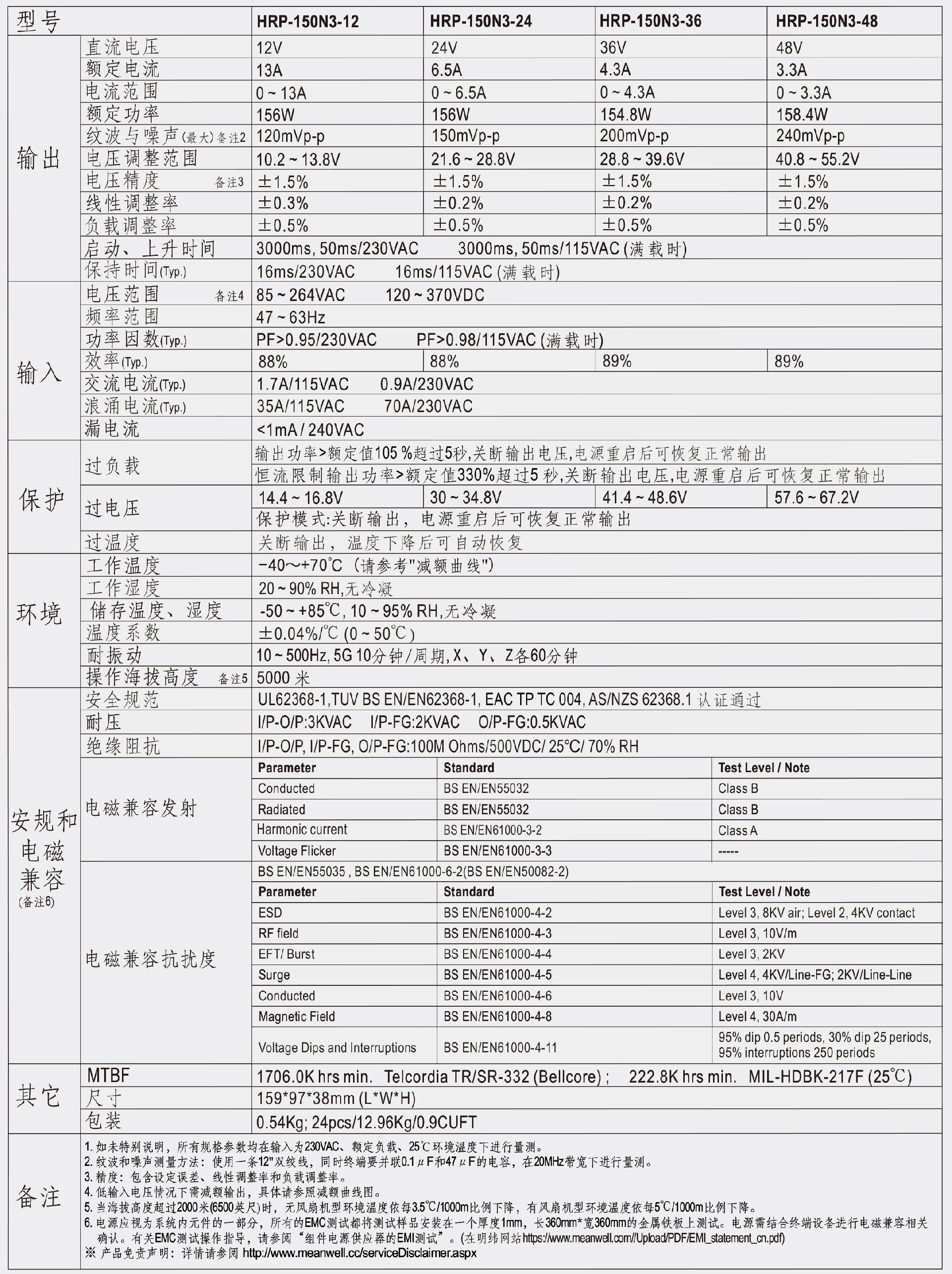

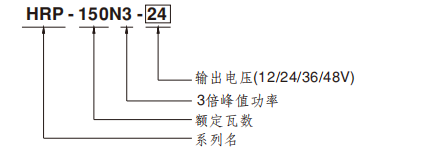

| MODEL | HRP-150N3-12 | HRP-150N3-24 | HRP-150N3-36 | HRP-150N3-48 | ||||
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V | 48V | |||
| RATED CURRENT | 13A | 6.5A | 4.3A | 3.3A | ||||
| CURRENT RANGE | 0 ~ 13A | 0 ~ 6.5A | 0 ~ 4.3A | 0 ~ 3.3A | ||||
| RATED POWER | 156W | 156W | 154.8W | 158.4W | ||||
| RIPPLE & NOISE (max.) Note.2 | 120mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | ||||
| VOLTAGE ADJ. RANGE | 10.2 ~ 13.8V | 21.6 ~ 28.8V | 28.8 ~ 39.6V | 40.8 ~ 55.2V | ||||
| VOLTAGE TOLERANCE Note.3 | ±1 .5% | ±1 .5% | ±1 .5% | ±1 .5% | ||||
| LINE REGULATION | ±0 .3% | ±0 .2% | ±0 .2% | ±0 .2% | ||||
| LOAD REGULATION | ±0 .5% | ±0 .5% | ±0 .5% | ±0 .5% | ||||
| SETUP, RISE TIME | 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load | |||||||
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC at full load | |||||||
| INPUT | VOLTAGE RANGE Note.4 | 85 ~ 264VAC 120 ~ 370VDC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| POWER FACTOR (Typ.) | PF>0 .95/230VAC PF>0 .98/115VAC at full load | |||||||
| EFFICIENCY (Typ.) | 88% | 88% | 89% | 89% | ||||
| AC CURRENT (Typ.) | 1 .7A/115VAC 0 .9A/230VAC | |||||||
| INRUSH CURRENT (Typ.) | 35A/115VAC 70A/230VAC | |||||||
| LEAKAGE CURRENT | <1mA / 240VAC | |||||||
| PROTECTION | OVERLOAD | Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover | ||||||
| Constant current limiting for output power >330% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover | ||||||||
| OVER VOLTAGE | 14.4 ~ 16.8V | 30 ~ 34.8V | 41.4 ~ 48.6V | 57.6 ~ 67.2V | ||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70C (Refer to "Derating Curve") | ||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -50 ~ +85C, 10 ~ 95% RH non-condensing | |||||||
| TEMP. COEFFICIENT | ±0 .04%/C (0 ~ 50C) | |||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min ./1cycle, 60min . each along X, Y, Z axes | |||||||
| OPERATING ALTITUDE Note.5 | 5000 meters | |||||||
| SAFETY & EMC (Note 6) | SAFETY STANDARDS | UL62368- 1, TUV BS EN/EN62368- 1, EAC TP TC 004, AS/NZS 62368.1 approved | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P- FG:2KVAC O/P- FG:0 .5KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P- FG, O/P- FG:100M Ohms / 500VDC / 25C/ 70% RH | |||||||
| EMC EMISSION | Parameter | Standard | Test Level / Note | |||||
| Conducted | BS EN/EN55032 | Class B | ||||||
| Radiated | BS EN/EN55032 | Class B | ||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||||
| Voltage Flicker | BS EN/EN61000-3-3 | ----- | ||||||
| EMC IMMUNITY | BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2) | |||||||
| Parameter | Standard | Test Level / Note | ||||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact | ||||||
| RF field | BS EN/EN61000-4-3 | Level 3, 10V/m | ||||||
| EFT/ Burst | BS EN/EN61000-4-4 | Level 3, 2KV | ||||||
| Surge | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG; 2KV/Line-Line | ||||||
| Conducted | BS EN/EN61000-4-6 | Level 3, 10V | ||||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, 30A/m | ||||||
| Voltage Dips and Interruptions | BS EN/EN61000-4- 11 | 95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods | ||||||
| OTHERS | MTBF | 1706 .0K hrs min . Telcordia TR/SR-332 (Bellcore) ; 222 .8K hrs min . MIL- HDBK-217F (25C) | ||||||
| DIMENSION | 159*97*38mm (L*W*H) | |||||||
| PACKING | 0.54Kg; 24pcs/12.96Kg/0.9CUFT | |||||||
| NOTE | 1. All parameters NoT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair.wire terminated with a 0.1uf & 47uf parallel capacitor.  3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltages. Please check the derating curve for more details. 5. The ambient temperature derating of 3.5C/1000m with fanless models and of 5C/1000m with fan models for operating altitude higher than 2000m(6500ft). 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm·360mm metal plate with 1mm of thickness. The final equipment must be re.confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EM1 testing of component power supplies." ※ Product Liability Disclaimer： For detailed information, | |||||||
